2010 BMW K1300R

The K1300R Power Roadster is a high-performance riding machine offering a perfect blend of performance, riding safety and technical features carried over from the K1300S. So while the drivetrain and running gear are carried over from the K1300S, they have been modified in this case to meet the particular requirements of a large-capacity naked bike. The most significant and outstanding considerations in developing the K1300R were indeed to offer the rider supreme riding pleasure combined with equally outstanding safety on the road as well as the most sophisticated design features and an extroverted, masculine look.

It's impossible to imagine a more striking or more exciting naked bike. Designed without compromise to impress - and to perform. An output of 173hp (127 kW) an­d 140 Nm of torque ensure it can handle anything the street can throw at it. Looks aren't always deceptive.
Imposing design meets unique technology. Technology such as the famous BMW Motorrad Duolever for optimum handling, and optional BMW Motorrad ABS and TPC Tyre Pressure Control. The K 1300 R is also the only naked bike available with gear shift assist, allowing riders to change up without declutching or taking their hand off the throttle.

ESA II (Electronic Suspension Adjustment) is available as an option on the K 1300 R, allowing you to modify the suspension set-up depending on the load you are carrying

Features and Specifications

Standard Factory Equipment:
Engine/Driveline
4 Cylinder in line engine, mounted across the frame and inclined at 55°
4 Valve cylinder heads
6 Speed gearbox
Stainless steel exhaust system
Digital engine management
Closed loop 3 way catalytic converter with oxygen sensor
Shaft drive
Knock control (95 – 98 ROZ)

Running Gear
BMW Motorrad Duolever front suspension and paralever (EVO) rear suspension
Twin disk front brake (EVO, 320mm dia.)
Single disk rear brake
Hydraulic rear spring preload adjuster
Prop stand with starter inhibit
Continuously adjustable rear rebound damping
Cast aluminium single swing arm
Cast Aluminium wheels
5.5 x 17 rear wheel with 180/55 ZR 17 tyre

Electronics
Permanent headlamp beam
Electronic immobiliser
Diagnostic interface
Info flat screen (digital clock, gear indicator, fuel gauge, coolant temperature and cruising range indicator, total and 2 trip odometers, service interval indicator)
Power socket
Single wire system
Hazard warning flasher
White turning indicator

Equipment
Storage compartment with toolkit
One key system for ignition, steering, fuel filler cap and dual seat locks
Adjustable handbrake and clutch lever
Integral ignition switch and steering lock
One piece dual seat

Colour Options:

Lava Orange Metallic
Silk Metallic
Light Grey Metallic Factory Fit Options:
Description Price inc. VAT
Sports Wheels with 190/50 ZR 17 tyre £200.00
Comfort Passenger Seat £75.00
Luggage Grid £115.00
ASC £290.00
Integral ABS (Partial) £965.00
Anti-Theft Alarm £190.00
LED Indicators £95.00
Small Cockpit Fairing £165.00
On Board Computer (with oil level warning) £145.00
Tyre Pressure Control £195.00
Heated Grips £225.00
Electronic Suspension Adjustment 2 (ESA2) £690.00
Gear Shift Assist £315.00
Dual Low Seat (790mm) £0.00
Description Price inc. VAT
Dynamic Package (Tyre Pressure Control, Integral ABS (partial) and ASC) £1365.00
Comfort Package (Sports wheels with 190/50 ZR 17 tyre, Heated Handlebar Grips, On Board Computer with oil level warning, Small Cockpit Fairing and LED indicators) £750.00

Engine
Type Water-cooled 4-stroke in-line four-cylinder engine, four valves per cylinder, two overhead camshafts, dry sump lubrication.
Bore x stroke 80 mm x 64,3 mm
Capacity 1,293 cc
Rated output 127 kW (173 hp) at 9,250 rpm
Max. torque 140 Nm at 8,250 rpm
Compression ratio 13.0 : 1
Mixture control / engine management Electronic intake pipe injection/digital engine management including knock sensor (BMS-K)
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed Over 200 km/h
Fuel consumption per 100 km at constant 90 km/h 5,0 l
Fuel consumption per 100 km at constant 120 km/h 5,8 l
Fuel type Unleaded premium, octane number 98 (RON), automatic knock control permits operation with minimum octane number 95 (RON).
Electrical System
Alternator three-phase alternator 580 W
Battery 12 V / 14 Ah, maintenance-free

Power transmission
Clutch Multiple-disc clutch in oil bath, hydraulically operated
Gearbox Constant mesh 6-speed gearbox
Drive Shaft drive

Chassis / brakes
Frame Bridge-type, cast aluminium, load bearing engine
Front wheel location / suspension BMW Motorrad Duolever; central spring strut
Rear wheel location / suspension Cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut with lever system, spring pre-load adjustable (continuously variable) at hydraulic handwheel, adjustable rebound damping
Suspension travel front / rear 115 mm / 135 mm
Wheelbase 1.585 mm
Castor 104,4 mm
Steering head angle 60,4°
Wheels Cast aluminium
Rim, Front 3,50 x 17"
Rim, rear 5,50 x 17"
Tyre, front 120/70 ZR 17
Tyre, rear 180/55 ZR 17
Brake, front Twin disc, floating brake discs, diameter 320 mm, 4-piston fixed calipers
Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
ABS Optional extra: BMW Motorrad Integral ABS (part-integral)
Dimensions / weights
Length 2.228 mm
Width (incl. mirrors) 856 mm
Height (excl. mirrors) 1.095 mm
Seat height, unladen weight 820 mm (low seat: 790 mm)
Inner leg curve, unladen weight 1,810 mm (low seat: 1,750 mm)
Unladen weight, road ready, fully fueled 243 kg
Dry weight 217 kg
Permitted total weight 460 kg
Payload (with standard equipment) 217 kg
Usable tank volume 19 l
Reserve approx. 4,0 l

Read More

2010 BMW HP2 Sport

The sportiest and most powerful series production flat twin of all time, the HP2 Sport continues into model year 2010 with the addition of a special Motorsport Edition.

The HP2 Sport Motorsport Edition continues to be powered by the familiar flat twin engine equipped with double overhead camshafts delivering 133 hp at 8750 rpm, but emulating the look of the BMW Motorrad Motorsport factory racers, featuring fairing, fuel tank, seat bench, front mudguard and engine spoiler painted in the BMW Motorsport colours Alpine White, Lupine Blue metallic and Magma Red.

Outstanding race results are inexorably linked with BMW Motorrad’s flat twin “Boxer” models. So it is an obvious step to build a high-end version! The result is the BMW HP2 Sport: the uncompromising realisation of the 24-Hour Endurance racer as a road machine. 100 per cent motor racing genes, licensed for the road. An exclusive sports machine by BMW Motorrad for motor racing connoisseurs and 2-cylinder enthusiasts which puts racing expertise into serial production - with power and authenticity. With an incredible air/oil-cooled 133 bhp and 115 Nm - a unique performance for a serial production “Boxer”!
The BMW HP2 Sport caused quite a stir with its race track appea­rances - rarely has a 2-cylinder flat twin bike caused the competition so much trouble, it even outdistanced many a 4-cylinder bike. In the last 24-hour race at the Oschersleben Speedweek, both machines entered in the race finished in the overall top 10. One reason for this perfor­mance is the DOHC cylinder head*, which is being used for the first time in this fascinatingly engineered enthusiast’s motorcycle.

For all ambitious sports riders and keen flat twin fans a unique limited edition of 400 is now to be produced: derived from the paint finish of the Endurance machine, it is finished in the colours Alpine White /Indigo Blue / HP Red. As in the racing machine, the rims are finished in Indigo Blue at the front and Alpine White at the rear. Otherwise all the familiar specifications apply, including the material - leading to a sensational dry weight of 178 kg - and the impressive performance figures. In short: take the opportunity to put it away right now - or else use it for what it was built for and order a second set of rims for the rain tyres along with it! ­

* DOHC = Double OverHead Camshaft, double overhead camshaft for each cylinder.

With a staggering 130 horsepower, the HP 2 Sport features the most powerful Boxer engine ever designed by BMW Motorrad. For the first time ever, double overhead camshafts are included in our famous opposed twin cylinder motor, kicking out even more revs. Making the HP2 Sport even more track-ready is new Quickshifter technology, which means faster gear changes without having to chop the throttle or use the clutch. Add a fully adjustable Ohlins sport front and rear suspension, Radial mounted Brembo Monobloc brakes, a lightweight carbon fiber aerodynamic fairing, not to mention forged racing wheels and tires and a MotoGP-inspired cockpit that computes lap times and other racing data, and the result is one of the most advanced sport bikes to ever scorch the tarmac.

Engine

Type Air/oil-cooled 2-cylinder 4-stroke flat twin ('Boxer'), two camshafts, four valves per cylinder in radial arrangement, central balancer shaft
Bore x stroke 101 mm x 73 mm
Capacity 1,170 cc
Rated output over 133 bhp (98 kW) at 8,750 rpm
Max. torque 85 lb/ft (115 Nm) at 6,000 rpm
Compression ratio 12.5 : 1
Mixture control / engine management Electronic intake pipe injection / BMS-K digital engine management with overrun fuel cut-off, single-spark ignition
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed over 120 mph (200 km/h)
Fuel consumption per 100 km at constant 90 km/h no data available
Fuel consumption per 100 km at constant 120 km/h no data available
Fuel type Unleaded premium
Electrical system
Alternator Three-phase alternator 480 W
Battery 12 V / 12 Ah, maintenance-free
Power transmission
Clutch 180 mm dry, single plate w/ hydraulic actuation
Gearbox Constant mesh 6-speed gearbox with helical gear teeth
Drive Enclosed driveshaft with two universal joints

Chassis / brakes
Frame Tubular steel space frame, front and rear made of self-supporting carbon
Front wheel location / suspension Telelever, spring pre-load continuously variable, compression damping, rebound damping and vehicle height adjustable
Rear wheel location / suspension EVO Paralever, Öhlins central spring strut, spring pre-load continuously adjustable, rebound and compression damping adjustable, vehicle height adjustable
Suspension travel front / rear 4.1 in (104 mm) / 4.7in (119 mm)
Wheelbase 58.5 in (1,485 mm)
Castor 3.4 in (86 mm)
Steering head angle 66 °
Wheels Milled cast aluminium wheels
Rim, front 3.50 x 17"
Rim, rear 6 x 17"
Tyres, front 120/70 ZR 17
Tyres, rear 190/55 ZR 17
Brake, front Dual disc brake, floating brake discs, 320 mm diameter, Brembo monobloc 4-piston caliper
Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
ABS BMW Motorrad ABS as optional extra, deactivation function, with brake pressure detection

Dimensions / weights
Length 84 in (2,135 mm)
Width (incl. mirrors) 29.5 in (750 mm)
Height (excl. mirrors) 45.8 in (1,163 mm)
Seat height, unladen weight 32.7 in (830 mm)
Inner leg curve, unladen weight 71.3 in (1810 mm)
Unladen weight, road ready, fully fuelled 1) 439 lb (199 kg)
Dry weight 2) 392 lb (178 kg)
Permitted total weight 728 lb (330 kg)
Payload (with standard equipment) 289 lb (131 kg)
Usable tank volume 4.2 U.S. gallons (16 litres)
Reserve approx. .8 U.S. gallons (3 litres)

Engine
Type Air/oil-cooled 2-cylinder 4-stroke flat twin ('Boxer'), two camshafts, four valves per cylinder in radial arrangement, central balancer shaft
Bore x stroke 101 mm x 73 mm
Capacity 1,170 cc
Rated output over 98 kW (133 bhp) at 8,750 rpm
Max. torque 115 Nm at 6,000 rpm
Compression ratio 12.5 : 1
Mixture control / engine management Electronic intake pipe injection / BMS-K digital engine management with overrun fuel cut-off, single-spark ignition
Emission control Closed-loop 3-way catalytic converter, emission standard EU-3
Performance / fuel consumption
Maximum speed over 200 km/h
Fuel consumption per 100 km at constant 90 km/h tbd
Fuel consumption per 100 km at constant 120 km/h dbd
Fuel type Unleaded premium, octane number 98 (RON); automatic knock control permits operation with minimum octane number 95 (RON)
Electrical System
Alternator Three-phase alternator 480 W
Battery 12 V / 12 Ah, maintenance-free
Power transmission
Clutch Single dry plate clutch, hydraulically operated
Gearbox Constant mesh 6-speed gearbox with helical gear teeth
Drive Shaft drive

Chassis / brakes
Frame Tubular steel space frame, front and rear made of self-supporting carbon
Front wheel location / suspension Telelever, spring pre-load continuously variable, compression damping, rebound damping and vehicle height adjustable
Rear wheel location / suspension EVO Paralever, Öhlins central spring strut, spring pre-load continuously adjustable, rebound and compression damping adjustable, vehicle height adjustable
Suspension travel front / rear 105 mm / 120 mm
Wheelbase 1,485 mm
Castor 86 mm
Steering head angle 66 °
Wheels Milled cast aluminium wheels
Rim, Front 3.50 x 17"
Rim, rear 6 x 17"
Tyre, front 120/70 ZR 17
Tyre, rear 190/55 ZR 17
Brake, front Dual disc brake, floating brake discs, 320 mm diameter, Brembo monobloc 4-piston caliper
Brake, rear Single disc brake, diameter 265 mm, double-piston floating caliper
ABS BMW Motorrad ABS as optional extra, deactivation function, with brake pressure detection

Dimensions / weights
Length 2,135 mm
Width (incl. mirrors) 750 mm
Height (excl. mirrors) 1,163 mm
Seat height, unladen weight 830 mm
Inner leg curve, unladen weight 1810 mm
Unladen weight, road ready, fully fueled 199 kg
Dry weight 178 kg
Permitted total weight 330 kg
Payload (with standard equipment) 131 kg
Usable tank volume 16 litres
Reserve approx. 3 litres

Read More

Suzuki V-Strom 1000

With remarkable versatility, the Suzuki V-Strom 1000 offers exceptional sport-touring performance. It’s designed for you to make the most of every mile, whether you’re winding your way over a mountain pass or out for a long weekend sport-touring.

Engine Features
Auto Fast Idling System (AFIS), automatically sets throttle valve opening during cold engine starts by monitoring coolant temperature

Digital ignition system provides optimum ignition timing with separate maps for each cylinder

Electronic fuel injection features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and improved engine torque

High-efficiency liquid cooling system for optimum engine operating temperature - includes compact oil cooler

High-mounted stainless steel exhaust system with aluminum mufflers tuned to enhance engine torque output

Lightweight shim-under-bucket valve system operates 36mm intake and 33mm exhaust valves, plus valve timing with emphasis on low-rpm power

Liquid-cooled 996cc, 90 degree V-twin, DOHC 8-valve, engine - tuned for strong low & mid-range torque

PAIR - air injection system reduces CO and HC emissions - California model equipped with catalyst in exhaust to further reduce emissions

SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation

Semi-gear driven valve system simplifies maintenance and minimizes cam sprocket size and engine height for optimum engine placement
Transmission Features
Lightweight magnesium valve covers, ignition cover, and sound-deadening plastic outer clutch cover

Wide-ratio 6-speed transmission with 6th gear over-drive and wide-diameter hydraulic clutch for a light pull at the clutch lever
Chassis Features
Link-type rear suspension features a piggyback-style shock absorber with adjustable rebound damping and a knob-operated hydraulic preload adjuster - 6.3 inches of wheel travel

Aluminum twin-spar frame and aluminum swingarm are lightweight, compact and rigid - bolt-on sub-frame simplifies maintenance

Black-painted frame and swingarm for stylish appearance

Cartridge-style 43mm front fork with adjustable preload provides 6.3 inches of wheel travel for a comfortable ride

Dual front disc brakes with large 310mm rotors and twin-piston calipers, plus single-disc rear brake with 260mm rotor and single-piston caliper

Easy-to-read instruments with large speedometer and tach dials, plus LCD display for fuel level, engine temperature, odometer, tripmeters and clock

Engine undercover shaped for ample ground clearance and sleek appearance

Height-adjustable windshield for increased wind protection and comfort - can be adjusted to three positions in a 50mm vertical range

Large 5.8 gallon fuel tank for long-range operation

Large rear luggage rack with rubber-padded platform to help keep bags and luggage in place

Lightweight cast aluminum wheels - F: 2.50 x 19 with 110/80R-19 radial tire, R: 4.0 x 17 with 150/70R-17 rear tire

Sport-styled front fairing for wind protection, plus large comfortable seat, engine guard, and hand guards - fairing includes large multi-reflector 60/55W headlights

Standard hand guards designed for maximum wind protection

Read More

Suzuki Sportbike 2011 GSX - R 1000

The GSX-R1000 is a motorcycle that has been fine-tuned and developed on racetracks and on asphalt around the world. It’s a machine that resolutely defines dominance, having won an incredible seven straight AMA Superbike Championships in a row. With its class-leading engine, chassis and suspension technology, there’s no question that the GSX-R1000 is the undisputed superbike of our era.

New for 2011: The GSX-R1000 is offered in a new Metallic Triton Blue/Glass Splash White finish with updated graphics as well as a Solid Black/Metallic Mat Titanium Silver.

Engine Features
The class-leading GSX-R is powered by a 999cc four-cylinder powerplant with a bore and stroke of 74.5mm x 57.3mm and a compression ratio of 12.8:1. This engine delivers enhanced throttle response across the entire RPM range and offers high potential for racetrack performance. The engine is built with high-quality titanium valves, forged pistons and shot-peened conrods.

The combustion chamber accommodates large intake and exhaust valves. Intake valve size is 31mm and exhaust valve size is 25mm.

The engine’s oversquare bore and stroke of 74.5mm x 57.3mm gives it specifically increased performance at high RPM.

The compact engine allowed Suzuki engineers to incorporate a shorter wheelbase design with a longer swingarm for improved racetrack performance.

Suzuki Composite Electrochemical Material (SCEM)-plated cylinders integrated into the upper crankcase helps reduce friction, improve heat transfer, increase durability and provides better ring seal.

The SDTV (Suzuki Dual Throttle Valve) system uses two butterfly valves in each throttle body barrel, the primary valve controlled by the rider via the twist grip and the secondary valve controlled by the ECM.

Each throttle body feeds two cylinders and each throttle body barrel carries two ultra-fine-atomization, 12 hole injectors that produce a fine fuel mist for more complete combustion. This ultimately reduces fuel consumption and exhaust emissions. In addition, the GSX-R1000 is outfitted with Iridium spark plugs, which produce a strong spark for efficient combustion.

A unique Suzuki Drive Mode Selector (S-DMS) system allow the rider to select one of three fuel injection and ignition system maps, adjusting power delivery to suit personal preference. Using a button on the left handlebar control module, the rider can instantaneously switch between the three available maps, which are designated A, B and C as displayed on the instrument panel.

A large, efficient radiator with a trapezoidal shape developed on factory team racebikes and a trapezoidal engine oil cooler both help reduce drag. The oil cooler’s trapezoidal shape (instead of the more conventional rectangular shape), allows the lower fairing to be narrower, which helps improve aerodynamics and reduce drag.

Suzuki Advanced Exhaust System (SAES) uses an under-engine chamber with low-slung, large-volume race-inspired titanium mufflers.
Transmission Features
The back torque-limiting clutch incorporates the Suzuki Clutch Assist System (SCAS) for light clutch pull and optimum clutch performance. This cable-operated back-torque-limiting clutch makes for efficient clutch operation with superb feel.
Chassis Features
The GSX-R1000 is equipped with a compact twin-spar cradle frame made of five cast sections. The frame is paired with a one-piece die-cast rear subframe and an arched swingarm made of three castings.

Lightweight Showa Big Piston front Forks (BPF) 43mm fork design eliminates the internal cartridge assembly inserted into each fork leg and instead uses a single 39.6mm upper piston riding against the inside wall of the inner fork tube. This endurance-race-proven design offers more effective valving, with more controlled compression to deliver better feedback to the rider.

The Showa rear shock works through an aluminum alloy linkage mounted on the swingarm and an extruded aluminum alloy link rod connected to the frame. The rear shock offers adjustable rebound damping, spring preload, and both high-speed and low-speed compression damping.

Electronically controlled steering damper uses the ECM to monitor motorcycle speed and adjust damping force as needed.

The front brakes feature fully floating 310mm discs and rigid, lightweight race-proven monoblock forged radial-mount calipers.

The rear disc brake works with a single piston caliper mounted above the swingarm.

The edgy and clean GSX-R1000 styling incorporates fairing and bodywork details aimed at reducing turbulence and drag.

Attention to rider comfort includes a carefully shaped seat and adjustable footpegs (the footpegs remain three-way adjustable - 14mm in a horizontal and vertical range). A tailsection cover is also included for solo rides or track days.

The capacity of sculpted fuel tank is 17.5 liters (4.6 US gal). Only the Californian spec. model has a 16.5 liters (4.4 US gal) fuel tank.

The GSX-R1000 has distinctive multi-reflector headlight with vertically stacked high and low-beam halogen bulbs centered between position lights on each side. The front and rear turn signals feature clear lenses over amber bulbs.

Instruments include a silver-ringed analog tachometer with LCD speedometer. LCD readouts include odometer, dual trip meters, reserve trip meter, clock, coolant temperature/oil pressure warning indicator, gear position indicator, lap timer/stopwatch, S-DMS setting indicator and bar-graph indicating the instrument lighting level, or brightness.

Read More

Suzuki V-Strom 650

The Suzuki V-Strom 650 is engineered for an ideal combination of lightweight agility and crisp handling. The 650cc V-twin is a favorite of motorcycle journalists. This bike invites you to carve up canyon roads or ride the open highway in all-day comfort.

Engine Features
Auto Fast Idling System (AFIS), automatically sets throttle valve opening during cold engine starts by monitoring coolant temperature

Digital ignition system provides optimum ignition timing with separate maps for each cylinder

Electronic fuel injection features the Suzuki Dual Throttle Valve System (SDTV) - maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response

High-efficiency liquid cooling system for optimum engine operating temperature - includes compact oil cooler

High-mounted stainless steel exhaust system with aluminum muffler tuned to enhance engine torque and low-to-midrange performance

Lightweight shim-under-bucket valve system operates 31mm intake and 25.5mm exhaust valves, plus valve timing with emphasis on low-rpm power

PAIR - air injection system reduces CO and HC emissions - California model equipped with catalyst in exhaust to further reduce emissions

SCEM (Suzuki Composite Electro-chemical Material) plated cylinders minimize cylinder size and improve heat dissipation

SV650-based 645cc 90 degree V-twin, DOHC 8-valve, liquid-cooled engine with dual spark plug heads for improved combustion and reduced emissions
Transmission Features

Plastic outer clutch cover and engine sprocket cover for reduced weight and noise

Smooth shifting 6-speed transmission with cable operated clutch - final drive ratio lowered from SV650 for improved low rpm performance
Chassis Features
Link-type rear suspension features a single shock absorber with adjustable rebound damping and a knob-operated hydraulic preload adjuster for easy adjustment

Aluminum twin-spar frame and aluminum swingarm are lightweight, compact and rigid - bolt-on sub-frame simplifies maintenance

Black-painted frame and swingarm for stylish appearance

Compact step-motor speedometer and tachometer with LED illumination, plus LCD display for twin tripmeters, odometer temperature gauge, fuel gauge and digital clock

Dual front disc brakes with large 310mm rotors and twin-piston calipers, plus single-disc rear brake with 260mm rotor and single-piston caliper

Height-adjustable windshield for maximum wind protection and comfort - can be manually adjusted to three positions in a 50mm vertical range

Large 5.8 gallon fuel tank for long-range operation

Large rear luggage rack with rubber-padded platform to help keep bags and luggage in place

Lightweight cast aluminum wheels - F: 2.50 x 19 with 110/80R-19 radial tire, R: 4.0 x 17 with 150/70R-17 rear tire

Preload-adjustable 43mm front fork for a comfortable ride under all riding conditions

Slim and compact front fairing for maximum wind protection, plus large comfortable seat - fairing includes large multi-reflector 60/55W headlights

Read More

Suzuki V-Strom 650 ABS

In 2002, Suzuki introduced the V-Strom 1000 in a new motorcycle category, the Sport Enduro Tourer. Its running performance and packaging earned worldwide acclaim. In 2003, Suzuki released the V-Strom 650 targeting a wider range of users. This versatile model covers not only daily use such as commuting, but also weekend touring as well. With the addition of an ABS-equipped model in 2006, the V-Strom 650 has always been the best-selling model in its class. To further improve its running performance and riding comfort, Suzuki decided to develop a new model.

For 2012, Suzuki is introducing the new and improved V-Strom 650 ABS. The development concept for the 2012 model was "The Comfortable Adventure Tourer". While enhancing the proven running performance and in-town versatility of the current model, Suzuki improved the riding comfort even further on the 2012 V-Strom. Its new V-Twin 645cc engine features improved overall performance in the low-to-mid rpm range and the styling and bodywork design was revamped for better wind protection. In addition, fuel economy and environmental performance were also enhanced.

2012 will mark the 10th anniversary of the V-Strom series since its introduction. Suzuki hopes the new V-Strom 650 ABS will be enjoyed by many more riders.

Key Features
The V-Strom 650 Antilock Brake System (ABS)* unit features a lightweight, compact design. The ABS monitors wheel speed, and matches stopping power to available traction.

*Please note that ABS is a supplemental device for brake operation, not a device for shortening stopping distance. Always remember to reduce speed sufficiently before approaching curves and corners.

Compact, slim styling featuring a vivid combination of expressive painted sections and functional black resin components accentuates the sporty profile. Colors available: Metallic Fox Orange; Glass Sparkle Black
Engine Features
645cc V-Twin engine features broad torque delivery, signature V-Twin power pulses and sporty quick-revving high rpm range power surges for full-range riding enjoyment. An efficient engine design delivers high mileage and class-leading riding range.

A high-speed 32-bit ECU controls Suzuki Dual Throttle Valve (SDTV) system, contributing to enhanced low-to-mid rpm range torque, a linear throttle response and lower emissions.

The V-Strom 650 ABS has a high-mounted stainless steel exhaust system with aluminum muffler that is tuned to enhance engine torque and low-to-midrange performance.

The V-Strom 650 ABS fuel injection system uses fine-atomization 10-hole fuel injectors for high combustion efficiency.

A radiator with a more compact core, flanked by wind-directing plates shaped with holes* for enhancing cooling efficiency, allows hot radiator air to flow out to the side air outlets and away from the rider’s legs. (*Patent pending.)

Suzuki-developed and patented Throttle-body Integrated Idle Speed Control (TI-ISC) contributes to easy cold starting, stable idle and lower emissions.
Transmission Features
The 6-speed transmission is tailored for active sporty rides with tighter 1st through 5th gear ratios, while keeping highway cruises comfortable with a tall top gear.
Chassis Features
Lightweight and rigid twin-spar aluminum-alloy frame and swingarm contribute to smooth handling performance and well-poised running at high-speeds.

The V-Strom 650 ABS features spring-preload-adjustable 43mm-stanchion-tube front forks and link-type rear suspension with rebound stepless damping adjuster as well as a spring preload adjuster.

19-inch front and 17-inch rear radial tires specifically designed for the V-Strom 650 ABS.

Front dual 310mm-disc brakes and rear 260mm-disc brake deliver smooth, controllable stopping power. Expansion-resistant high-pressure brake hose enhances the responsive brake feel.

Antilock Brake System (ABS)* unit features a lightweight, compact design. The ABS monitors wheel speed, and matches stopping power to available traction.

The sporty, dynamic front fairing houses compact dual multi-reflector headlight delivering superb light distribution.

A 3-way height-adjustable windscreen, carefully shaped with extensive wind tunnel testing, efficiently reduces wind noise and rider fatigue.

The V-Strom 650 ABS features a comfortable riding position, thanks to its well-shaped seat. A slim 5.3 gallon fuel tank and compactly tucked-in frame covers make the rider feel at one with the machine.

The V-Strom 650 ABS seat combines red-stitched leather-look sections and suede-look, slip-resistant surfaces, and is topped off with an embossed V-Strom logo.

A lightweight, one-piece, resin luggage carrier with well-shaped, easy-to-grasp grab bars comes with a slip-resistant rubber mat.

Instrumentation includes an analog tachometer and brightness-adjustable LCD speedometer. LCD readouts include odometer, dual trip meter, gear position, coolant and ambient temperature, average fuel consumption, fuel gauge and clock. Switching between LCD readings can be done with the left handlebar switch.

LED indicators include a road freeze warning indicator, which, together with the ambient temperature display, helps riders’ awareness of road conditions.

Read More

Suzuki DR-Z400 SM

Based on the renowned DR-Z400 off-road bike, the DR-Z400SM offers outstanding acceleration in every gear. But the dirt-ready knobbies are replaced with pavement-gripping street tires mounted on 17-inch wheels. The SM delivers all the thrill of a SuperMoto competition in a road-friendly package.

Key Features
Suzuki's Supermotard model based on DR-Z400S - combines Supermotard style and features in a narrow, lightweight street-legal package
Engine Features
Automatic decompression system for quick/easy engine starts

Compact 4-valve cylinder head with 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle and shim-under-bucket valve adjustment system

Electric start with lightweight starter motor and a compact 6.5 amp maintenance-free battery

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling to the piston crown through a crankcase oil jet

Lightweight 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable low-rpm power

SCEM-plated cylinder (nickel-silicon-phosphorous) is lighter and more durable than an iron liner with excellent heat transfer properties

Smooth throttle response with a Mikuni™ BSR36 CV-type carburetor fed by 6-liter airbox. The left side cover has quick-release fasteners for easy access to the air filter

Thermostatically controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic
Transmission Features
Additional weight savings with magnesium valve cover, clutch cover, and magneto cover

Compact 5-speed transmission utilizes a cable-operated clutch with separate outer cover for simplified clutch maintenance
Chassis Features
A fully adjustable rear shock absorber with high/low speed compression damping adjuster and aluminum swingarm for precise rear wheel control

A bolt-on aluminum subframe helps reduce weight and simplify maintenance

Black-painted RK Excel 17" aluminum rims and radial tires: 120/70-R17 front, 140/70- R17 rear

Chrome-moly steel footpegs, aluminum rims/hubs, plus engine guard and rear disc guard

Compact digital instrument cluster with speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, timer and stopwatch functions

Long travel, Showa-brand inverted front fork derived from RM250 - features adjustable compression/rebound damping and alumite coating on inner tube surfaces for smooth action

Narrow profile with smooth transitions between the tank, seat and bodywork

New front and rear axle sliders

On-road legal lighting with bright 60/55 watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals and horn

Renthal tapered aluminum handlebar for reduced vibration and an aggressive look

Strong braking performance supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus 240mm rear disc brake with single-piston caliper

Read More

Suzuki DR-Z400 S

The 2011 DR-Z400S is a serious dirt bike designed and engineered to excel on everything from rough country roads to tight forest trails. It’s also completely street legal, with a counterbalanced engine for smooth performance around town.

The DR-Z400S offers exceptional off-road performance. It has a lightweight, compact design that helps it offer crisp handling everywhere off-road or on the street. The DR-Z400S engine provides strong torque across its powerband and amazing throttle response. It also features remarkably smooth performance, complemented by conveniences such as electric starting and a compact, easy-to-read instrument cluster.

On the trail or on across town rides, you can't beat the 2011 Suzuki DR-Z400S.

Engine Features
The DR-Z400S comes with a compact design, 398cc, DOHC, liquid-cooled, dry-sump engine that produces strong low-rpm power. Its compact 4-valve cylinder head features 36mm intake valves and 29mm exhaust valves.

Suzuki Composite Electrochemical Materials (SCEM) cylinder for durability, weight reduction and superior heat transfer.

Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling to the piston crown through a crankcase oil jet.

Smooth throttle response with a Mikuni™ BSR36 CV-type carburetor fed by 6-liter airbox. The left side cover has quick-release fasteners for easy access to the air filter.

Digitally mapped DC-CDI system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.

The DR-Z400S has electric start with a lightweight starter motor and a compact 6.5 amp maintenance-free battery.
Transmission Features
A compact 5-speed transmission utilizes a cable-operated clutch with separate outer cover for simplified clutch maintenance.
Chassis Features
A narrow chrome-moly steel frame is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank. A bolt-on aluminum subframe helps reduce weight and simplify maintenance.

Long travel, 49mm cartridge-style forks feature adjustable compression/rebound damping and adjustable spring preload for all types of on/off-road terrain.

A fully adjustable progressive linkage rear shock absorber (spring preload/compression damping adjustable) and aluminum swingarm for precise rear wheel control.

Sure stopping power is supplied by a 250mm front disc brake with dual-piston caliper, and a 220mm rear disc brake with a single-piston caliper.

A magnesium-alloy clutch, magneto and cam covers contribute to weight reduction.

Compact digital instrument cluster with speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, timer and stopwatch functions.

On-road legal lighting with bright 60/55 watt H4 halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals and horn.

A pouch on the rear fender carries tool kit and the owner's manual.

Read More

Suzuki DR 650 SE

If you think the fun begins at the end of the road, you've come to the right place. The 2011 Suzuki DR650SE combines the civilized capabilities of a street bike with the hard-charging performance and exceptional handling of a dirt bike. Its lightweight responsiveness makes it great for twisty two-laners on your way to work, or simply when riding through the forest on the weekend.

The lightweight single-cylinder DR650SE is engineered for an exceptional combination of off-road agility and smooth street performance. Off-road, the DR650SE shines. Its technologically advanced chassis and suspension systems help provide you with precise control on tight trails or open fire roads. For a real thrill, tap into the big single's awesome torque. It lets you accelerate hard out of corners and power your way across wide-open terrain.

On the street, the DR650SE is a joy to ride. Its engine has a counterbalancer for remarkably smooth operation, and it has a comfortable seat and spacious riding position.

The 2011 Suzuki DR650SE—it's your invitation to find your adventure.

Engine Features
The DR650SE is equipped with a compact, 644cc, SOHC, four-stroke, air-cooled, single counterbalanced engine equipped with Suzuki Advanced Cooling System (SACS). Additional piston-jet cooling and engine oil cooler are also standard features. The engine is tuned with an emphasis on powerful performance at low-to-mid rpm range.

Suzuki Composite Electrochemical Material (SCEM) coated aluminum cylinder is used for durability, weight reduction and superior heat transfer.

The DR650SE is equipped with a convenient electric starter (combined with a mechanical automatic decompression system for easy and quick starts). The system is powered by a lightweight and compact low-maintenance battery.

A Mikuni 40mm "Slingshot" carburetor enhances throttle response and overall engine performance.

A painted stainless-steel exhaust system is light and corrosion-resistant, and tuned specifically for strong low and midrange power.
Transmission Features
The DR650SE comes with a wide-ratio 5-speed transmission with O-ring sealed final drive chain.
Chassis Features
The DR650SE uses a lightweight, compact, rigid semi-double cradle frame that is built to provide excellent on/off road riding. Use of thin-wall/large-diameter tubing reduces weight while increasing frame rigidity.

Front fork combines the best features of conventional and inverted designs: smooth and progressive action. Large diameter, thin-walled tubes reduce unsprung weight while maintaining high rigidity (with minimal below-axle extension).

A link-type rear suspension with piggyback-style shock absorber and adjustable compression damping provides stable damping performance.

Front and rear suspensions both provide long 260mm (10.2-inch) wheel travel for superb maneuverability.

Lightweight 290mm (11.4-inch) front floating-disc brake with two-piston caliper and 240mm (9.4-inch) rear disc brake with two-piston caliper together provide reliable stopping power.

Hollow type wheel axles and an aluminum swingarm offers less unsprung weight.

The DR650SE's short wheelbase and low seat height provide nimble dualsport performance. The seat height can be lowered 40mm (1.6 in) with suspension modifications performed by a dealer.

The DR650SE comes with a full on-road lighting system with bright 60/55 watt halogen headlight; handlebar-mounted brushguards; special design tires with on/off road tread pattern fitted to 21-inch front and 17-inch rear wheel; and frame-mounted luggage rack for additional carrying capacity.

Read More

Suzuki DR 200 SE

With a seat height under 32 inches and weighing just 278 pounds, the Suzuki DR200SE offers quick, agile handling. The four-stroke engine has a wide powerband and smooth acceleration to help build your confidence while you learn to ride.

Engine Features
5-speed transmission with gear ratios suitable for a wide variety of riding conditions

Electric starting system

Fuel efficient four-stroke, single-cylinder, air-cooled engine with Twin Dome Combustion Chamber (TDCC) cylinder head. Engine produces strong, low-rpm torque perfect for the entry level rider

Low-maintenance, digitally controlled CDI ignition system provides optimum ignition timing at all engine speeds

Painted stainless-steel exhaust system for high corrosion resistance

SCEM-plated cylinder for increased cooling efficiency and reduced weight
Chassis Features
Long-travel front suspension with 8.1 inches of wheel travel for on and off-road versatility

Single shock rear suspension system, gas/oil damped shock, fully adjustable spring preload, and 8.1 inches of wheel travel

Front and rear tires with special tread pattern for good traction in both on and off road riding conditions

Front disc brake and rear drum brake

Full lighting system and easy-to-read instrumentation including trip meter

Large 3.4-gallon fuel tank (3.3-gallon CA model) and fuel-efficient engine provide long-range fuel capacity

Low 31-inch seat height and compact chassis are perfect for the beginning rider

Snail-type chain adjusters for simple, accurate chain adjustment

Strong semi-double-cradle frame

Read More

Suzuki Sportbike 2011 GSX - R 750

The brand-new, redesigned 2011 GSX-R750 is the latest version of the original GSX-R – the championship-winning sport bike that is literally in a class of its own. While the unrivaled GSX-R750’s only challenge is outdoing itself, the all-new 2011 model responds with bold styling and exceptional performance. On the road or on the track, the 2011 GSX-R750 delivers a riding experience that is a breathtaking combination of outstanding engine performance, swift handling, compact size and light weight. The key to the GSX-R750’s racetrack-conquering speed and agile handling is the pairing of its powerful inline 4-cylinder, 16-valve 750cc engine into the lightweight, compact chassis of a 600cc Supersport. It’s a winning combination that will allow any rider to experience the exhilarating rush of a middleweight AMA

Engine Features
750cc 4-cylinder engine
The GSX-R750 is outfitted with a 750cc 4-cylinder engine with a race-proven oversquare bore/stroke ratio for efficient, high-revving output.

The GSX-R750 is equipped with a new 4-into-1 stainless-steel exhaust system featuring a titanium muffler, which carries a Suzuki Exhaust Tuning (SET) valve. The system maximizes torque and improves throttle response, especially in the low-to-mid RPM range.

Advanced, race-developed transistorized ignition control circuit helps maintain more precise ignition timing across the range of engine temperature.

The GSX-R750 powerplant utilizes forged pistons, shot-peened conrods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes for outstanding engine performance.

Suzuki Drive Mode Selector
Suzuki Drive Mode Selector (S-DMS) offers push-button selection of two racing-developed engine control maps to suit road conditions and personal tastes.

The GSX-R750 uses the world-class Suzuki Dual Throttle Valve (SDTV) fuel injection system, equipped with fine-spray 8-hole injectors, for improved fuel atomization. This contributes to more complete combustion in the cylinder.

Lightweight titanium-alloy valves are controlled by single valve spring to reduce mechanical losses.
Transmission Features
The crankcase carries a six-speed close-ratio transmission with vertically staggered shafts, to reduce overall engine length.

A race-proven back-torque-limiting clutch contributes to smoother downshifting and corner entry.
Suspension
Showa Big-Piston front Fork
Race-developed, lightweight Showa Big Piston front-Fork (BPF) delivers superb feedback and consistent performance.

Showa Rear Shock
A single Showa rear shock features externally adjustable rebound and compression damping, along with adjustable ride height.
Chassis Features
Twin-spar Aluminum Frame
Lightweight and compact: twin-spar aluminum cradle frame made of five cast sections and cast swingarm.

Footpegs shift lever fuel tank
Three-way adjustable footpegs, an adjustable shift lever, and a short fuel tank help produce a comfortable riding position.

Small, simple and lightweight bodywork features exciting and aerodynamic styling.

Brakes
The GSX-R750 comes equipped with front brakes with fully floating 310mm discs and radial-mounted, four-piston Brembo monoblock calipers.

The GSX-R750’s compact, lightweight instrument cluster comes with a built-in lap timer/stopwatch and programmable engine RPM indicators.

Instrumentation
Instrument cluster features an Analog tachometer; LCD readouts include speedometer, odometer, dual trip meter, reserve trip meter, clock, coolant temperature/oil pressure indicator, S-DMS and gear position indicators.

Steering Damper
An electronically controlled steering damper provides lighter steering at slower speeds and more damping force at racetrack and highway speeds.

Read More

2010 Kawasaki Ninja ZX-6R

When it comes to performance, no class is more competitive than middleweight sportbikes. To stand out in this crowd, a motorcycle needs to do everything better than well — it needs to kick serious tail in every department. Hats off to the Kawasaki Ninja® ZX™-6R then, winner of 600cc comparison tests in just about every publication and website of note on the planet. With an engine the critics agree feels bigger than 599cc, and a chassis that out handles all others, the ZX-6R returns as the bike to beat in 2010.

With a fine-tuned chassis including a class-exclusive Big Piston Fork and fully adjustable shock out back, razor-sharp handling sets the ZX-6R apart. To optimize front-rear rigidity balance, frame stiffness around the swingarm pivot and the rear engine mounts is carefully tuned, with the compact engine rotated forward around the output shaft for a steep cylinder bank angle and optimal center of gravity. An exhaust layout with a short side muffler keeps the weight low, and an exhaust pre-chamber further contributes to the ZX-6R’s mass centralization.

The Ninja ZX-6R’s lean physique is fundamental to its light handling, with every component on the bike carefully scrutinized for minimal weight. The intake resonator box and supports for the instrument panel and mirrors are unitized with the enlarged —to optimize intake volume — Ram Air duct, contributing to weight savings and improving rigidity. Camshafts are made of lightweight chrome-moly steel, and light, magnesium engine covers all add up to big weight savings, along with transmission, oil pump and starter gears carefully engineered for maximum strength and minimal weight.

Along with its light weight and compact design, the ZX-6R engine is packed with details to give it precise throttle control and amazing performance, particularly in the mid-range. Smooth power delivery is achieved through outstanding combustion efficiency. Cylindrical guides in the top of the airbox guide the fuel charge into the intake funnels to reduce buffeting and improve cylinder filling, along with advanced cylinder porting techniques. High-current secondaries in the ignition coils provide hot, consistent sparks at all rpm.

In addition to its more than healthy bottom-end torque and smooth throttle response, the engine’s mid-range performance benefits from a similar number of refinements, including double-bore velocity stacks with inlets at two different heights, special-profile pistons with low piston-ring tension for reduced friction, and advanced cam chain guides for excellent cam-chain stabilization.

That strong mid-range provides great drive out of corners and is harmonized with the engine’s silky smooth high-rpm performance. This linear throttle torque delivery results in unparalleled controllability and offers the rider precise throttle control at all rpm. This predictability pays dividends when making mid-corner power adjustments. When combined with the reduced need to downshift provided by its healthy mid-range performance, the predictable throttle response makes it easier for riders to maintain their rhythm when stringing corners together.

In keeping with its racing heritage, the ZX-6R employs a cassette-type transmission that simplifies gearing changes at the track, reducing set-up time and allowing more time for riding. A slipper clutch allows quick downshifts without upsetting the rest of the chassis when reducing speed on corner entry.

Corner-entry controllability is yet another ZX-6R strong suit, thanks to the use of Showa’s revolutionary BPF (Big Piston Front fork). The BPF utilizes a large-diameter internal piston, which permits a reduction in damping pressure, for smoother action and better front end feedback — especially under braking and initial corner turn-in. Additionally, the BPF eliminates many of the internal components used in a cartridge-type fork, simplifying construction and resulting in a lighter overall fork weight.

Having already designed a lighter and more rigid swingarm for the Ninja ZX-10R sportbike, the Kawasaki engineers utilized many of the same design components for the ZX-6R’s swingarm. Shared swingarm parts include both left and right inner plates, the left outer plate, rear stand bosses, brake caliper stopper, chain guard and swingarm pivot shaft.

The response from Kawasaki’s acclaimed triple petal disc brake package with radial calipers is as refined and powerful as ever. Radial-mounted four-piston calipers and 300mm petal rotors up front provide awesome power and excellent feel. The 220mm rear petal disc features a pedal coaxially mounted with the footpeg for increased mid-stroke braking efficiency and optimum feel. Its master cylinder reservoir mounts forward of the swingarm — freeing up space around the footpeg, reducing parts and contributing to weight savings. It all adds up to unflappable composure under braking, and helps provide the precise control and feel that allows Supersport racers to enter corners harder.

To better capitalize on this lighter machine and its precise control response, the rider interface is appropriately fine-tuned to enhance feedback from bike to rider and vice versa. The relationship of the seat-to-pegs-to-bar “rider triangle” places the handlebars close to the rider and angled for a highly intuitive riding position. The fuel tank cover is flared just so around its top edge, providing a large contact patch and contributing to excellent rider feedback — similar to the ZX-10R. A narrow rear sub-frame and seat leading edge provide a slim, highly flexible riding position for moving around the bike, as well as a shorter reach to the pavement.

A highly refined fairing and one-piece front fender provide excellent aerodynamics and airflow to the radiator, along with great wind protection and minimal crosswind buffeting. An inner rear fender above the swingarm also reduces turbulence and helps keep the tail clean. The ZX-6R’s instrument panel provides information at-a-glance, and a race-quality adjustable twin-tube Öhlins steering damper with relief valve completes the track-ready package.

Highly confidence inspiring, the engine and chassis control precision offered by the Ninja ZX-6R enables riders to push harder and maximize the excitement that comes from actively controlling such a high-performance track-focused machine.

Engine

Precise Engine Control At All Rpm And Powerful Mid-Range Torque
One of the greatest sources of excitement when riding a supersport comes from the reaction the rider gets when twisting the throttle. Engine development focused on delivering precise throttle control and increasing performance, particularly in the mid-range. Changes for improved driveability yielded very linear throttle response that gives the rider the feeling of being connected directly to the rear wheel. Stronger mid-range torque means the rider can enjoy greater drive out of corners as well as silky smooth high-rpm performance.


Precise throttle control
Cylindrical guides added to the top of the air cleaner box ensure more accurately sprayed fuel mist from the secondary injectors. With fuel more precisely directed into the intake funnels, combustion efficiency is improved.

Longer throttle bodies increase the distance between main and sub-throttles by 10 mm. The smoother transition between the oval sub-throttles and round main throttles yields smoother airflow to the engine, resulting in better driveability.

Revised cylinder porting delivers improved filling efficiency, for improved performance across the rev range.

New ignition stick coils have 12% greater secondary coil current. The improved combustion efficiency results in improved performance and driveability.


Slipper clutch
Adjustable back-torque limiting clutch helps reduce rear-wheel hop that may occur when downshifting at high rpm.

Increased mid-range performance
New double bore intake funnels (“velocity stacks”) feature inlets at two different heights, allowing performance increases in both the mid- and high-rpm ranges.

Optimised cam nitriding (NV) and tappets with increased durability enabled the use of high-load cam profiles which improve overall performance.

Pistons with new profiles and improved crown finishing contribute to the gain in performance.

Molybdenum coating on piston skirts reduces friction and facilitates engine break-in.

Piston rings with less tension reduce mechanical loss.

Revised cam chain guides stabilise chain motion, further contributing to reduced mechanical loss.

Revised exhaust collector layout contributes to improved low and mid-range performance while maintaining high-rpm performance.

Additional Features
Exhaust pre-chamber under the engine makes efficient use of space, reducing exhaust noise and helping to minimise silencer volume.



Chassis

One of the goals for the 2009 Ninja ZX-6R was to give the new bike lighter handling. The superb combination of mid-corner stability and ability to change lines on command was maintained from the ZX600P, but frame rigidity was revised and mass further centralised to make the new Ninja ZX-6R even easier to tip into corners. Further, the naturally aggressive ergonomics package was fine-tuned to offer riders an even better “fit” and to enhance the high level feedback that communicates to the rider what the bike is doing.

Revised chassis balance and mass centralisation
While structure of the main frame is basically the same as that of the ZX600P, revised rigidity around the swingarm pivot and the rear engine mounts optimises front-rear rigidity balance.

The engine is mounted with a steeper cylinder bank angle. Rotated around the output shaft, the engine’s C of G is 16 mm higher and the head pipe is situated 10 mm higher. The result is improved turning performance and easier turn-in.

New exhaust layout with a short side muffler lowers weight previously located under the seat, contributing to a much lighter feel when turning. Use of an exhaust pre-chamber further contributes to mass centralisation.




Ergonomics and chassis feedback
Kawasaki’s Ninja supersport seat-pegs-bar relationship was adjusted slightly, with the handlebars moved closer to the rider and turned in slightly. The new position contributes to the bike’s naturally intuitive riding position.

Fuel tank cover from the ZX1000E is more flared around its top, making it easier for the rider to rest the inside of his arm on the tank when leaning into a turn. The larger contact patch contributes to the increased feedback to the rider.

Slim, waisted fuel tank makes it easy for the rider to grip the tank with his knees or to hang off in turns.

Front to back, the new seat is shorter, allowing the rider to rest his tailbone on the rear seat step. This improved “fit” also contributes to the excellent feedback the rider gets from the chassis.

Steeper caster angle (25o >> 24o) enhances communication from the front tire.

Changes to the frame, while not easily visible, also contribute to enhanced feedback. Revisions to the front engine mounts and head pipe offer a more direct feel from the front. Adjustments to the rigidity of the swingarm and around the swingarm pivot give a clear feeling of rear wheel traction.

Relocating the rear brake master cylinder reservoir tank forward of the swingarm mount frees up space around the footpeg. The change also enables a reduction of parts and the shorter hose contributes to weight savings.


Lower seat height
The narrow width of the new rear sub-frame helps make it easier to reach the ground.

The front of seat is narrower, contributing to the narrow riding position and offering a shorter reach to the pavement.

Seat height is approximately 5 mm lower than that of the ZX600P.


Race-quality steering damper
An adjustable Öhlins steering damper with relief valve and twin-tube design is fitted as standard equipment. The second tube, which acts like a reservoir tank, and the damper internals, ensure stable damping performance even under racing conditions. (Even if the damping fluid in the cylinder gets hot it will not froth.) The damper unit has an integral clamp so that piston motion is not hindered.


Lighter Weight
In addition to the more flickable handling, our engineers wanted to make the new bike as light as possible. All engine and chassis parts were re-evaluated to reduce weight. The new Ninja ZX-6R has a curb mass approximately 10 kg lighter than its predecessor.


Additional Features
New cowling offers the rider better wind protection and was designed to better withstand side winds.

Position lamps are now integral with the projector beam headlamps. Like the ZX1000E, the new Ninja ZX-6R features dual position lamps.

New one-piece front fender (previously a three-piece construction) offers improved aerodynamics and contributes to parts reduction.

An inner fender added above the swingarm helps keep the undertail clean.

Intake ducts at the front of the lower fairings direct cool air into the engine compartment, contributing to more effective heat dissipation from the engine and radiator.

A cover integral with the exhaust pre-chamber gives it the appearance of being unitised with the lower fairing.

Left side of the swingarm now features a design like that of the ZX1000E. In addition to the left inner and outer plates, other parts common with the ZX1000E include the right inner plate, rear stand bosses, brake caliper stopper and chain guard and pivot shaft.

Revised front brake hose routing with a three-way joint at the lower triple-clamp facilitates bleeding air from the brake lines.

Similar in design to that of the ZX1000E, the new instrument panel gives at-a-glance information to the rider.


Suspension

The new BPF is one of the great contributing factors to the new Ninja ZX-6R’s great composure under braking. Compared to a cartridge-type fork of the same size, the BPF features a main piston almost twice the size (f37 mm vs f20 mm on ZX600P); oil inside the BPF acts on a surface area almost four times the size. The larger surface area allows the damping pressure to be reduced while ensuring the damping force remains the same. Reducing the damping pressure allows the slide pipe to move more smoothly, which is especially noticeable at the initial part of the stroke. The result is greater control as the fork begins to compress and very calm attitude change as vehicle weight shifts forward when reducing speed, and thus greater chassis stability on corner entry.

Because the BPF eliminates many of the internal components used in a cartridge-type fork, construction is simplified resulting in lighter overall fork weight.

Compression and rebound damping adjustment are located at the top of each fork tube. Preload adjustment is at the bottom.



Brakes

Large-diameter semi-floating 300 mm stainless-steel front petal discs deliver formidable stopping power. 6 mm thick, the discs are able to withstand the rigors of circuit riding.

Powerful radial-mount calipers give a very direct feel at the lever.
Radial-pump master cylinder ensures excellent touch and offers superb control.

A 220 mm petal disc slows the rear.

Revised rear brake pedal is now mounted coaxially with the footpeg for increased braking efficiency mid-stroke and a greater brake pedal stroke feeling.


Corner-Entry Controllability

The new Ninja ZX-6R takes corner entry performance to the next level. Featuring the first production-use of Showa’s BPF (Big Piston Front fork), Kawasaki’s acclaimed triple petal disc brake package with radial calipers and radial-pump master cylinder, and a highly effective slipper clutch, the Ninja ZX-6R offers supersport riders the calm composure and precise control and feel to enter corners harder.





Weight Savings

Camshafts are now made of SCM for a weight savings of approximately 400 g.

Lightweight magnesium engine covers are fit standard so that riders looking to maximise circuit performance do not need to change them. The magnesium covers save approximately 610 g.

For racing applications, noise-reducing pads inside the engine covers can be removed for an additional reduction of approximately 340 g (for a total savings of 950 g compared to the aluminum covers).

Revised top injector mounting plate saves approximately 80 g.

While maintaining rigidity, narrower transmission gears and revised gear dog shape contribute a 170 g weight savings.

Oil pump and starter gears have less meat, contributing a weight reduction of approximately 70 g.

Monitoring inlet pressure pulses enables the cam angle sensor to be eliminated, further contributing to engine weight reduction.

Coolant reservoir relocated and redesigned. The new shape and shorter tube save approximately 150 g.

Revised and relocated heat pads contribute approximately 170 g to weight savings.

Lightweight chassis
The 2-piece sub-frame is an aluminum die-casting consisting of a front and rear section. This layout enables a very precise and very lightweight construction. The new sub-frame is also very narrow, allowing the rear of the bike to be very compact and slim.

Resonator box and stays for the instrument panel and mirrors are unitised with the Ram Air duct, contributing to weight savings and increased rigidity.

Frame brackets revised to reduce overall number of parts, which also contributes weight savings.

New throttle case material contribute a weight savings of approximately 30 g.

While the rear flap stay has the same shape as the ZX-10R, using a new resin material saves approximately 150 g.

Engine: Four-stroke, liquid-cooled, DOHC, four valves per cylinder, inline-four
Displacement: 599cc
Bore x stroke: 67.0 x 42.5mm
Compression ratio: 13.3:1
Fuel injection: DFI® with four 38mm Keihin throttle bodies, oval sub-throttles, two injectors per throttle body
Ignition: TCBI with digital advance
Transmission: Six speed
Final drive: X-ring chain
Rake / trail: 24 deg / 4.1 in.
Frame type: Aluminum perimeter
Front tire: 120/70 ZR17
Rear tire: 180/55 ZR17
Wheelbase: 55.1 in.

Read More

2011 Benelli Century Racer 1130

The model TNT 1130 is also renewed with the introduction of a frame with a more sporting character, and, in addition to the modifications made on the TNT 899 version the folllowing components have been added: The totally adjustable rear shock absorber supplied by ZF SACHS; The engine mapping has been reset; Availability: March 2011 Colours: Centenary green

The model TNT 899 is reviewed with particular reference to the frame, giving this motorcycle a more sporting attitude: First of all the colour of the “centenary”: this is the green of the racing Benelli motorbikes of Pasolini in a modern interpretation; The introduction of the historical brand Benelli of the 60’s; The front fork “MARZOCCHI” becomes completely adjustable (DIA 50mm) and the finishing becomes black (black oxydation of the fork sliders); Use of front radial calipers “BREMBO”; Front brake discs (DIA 320mm) / rear (DIA 240mm), type “WAVE“ supplied by BRAKING; The seat is enriched thanks to the use of “alcantara” fabric; The “trim and colour” of the model has been renewed; The single-seat rear cowling has been introduced; The map of the engine has been reset; The camshaft cover and the spring of the rear shock absorber is now yellow and characterise the sporting touch of the Century Racer. Availability: March 2011 Colours: Centenary Green
MOTORE / ENGINE

TIPO
3 cilindri in linea, 4 tempi, raffreddamento a liquido , 4 valvole per
cilindro doppio asse a cammes in testa, con contralbero di equilibratura
TYPE
In line 3 cylinders, 4-stroke, liquid cooled , 4 valves per cylinder double
overhead camshaft, with balancer shaft

CILINDRATA
1131 c.c.
DISPLACEMENT

ALESAGGIO x CORSA
88 x 62 mm
BORE x STROKE

RAPPORTO DI COMPRESSIONE
11,2:1
COMPRESSION RATIO

POTENZA MASSIMA
95 kW (129 cv) @ 8500 rpm
RATED OUTPUT

COPPIA MASSIMA
110 Nm (11.2 kgm) @ 5250 rpm
MAX. TORQUE

LUBRIFICAZIONE A carter umido
LUBRICATION Wet sump

CAPACITA' TOTALE OLIO
4 lt
OIL CAPACITY

ALIMENTAZIONE Iniezione elettronica con tre corpi farfallati ø53 mm
FUEL SUPPLY Electronic injection with three throttle bodies ø53 mm

IMPIANTO DI SCARICO Con catalizzatore e sonda lambda
EXHAUST SYSTEM With catalytic converter and oxigen sensor

OMOLOGAZIONE
Euro 3
CERTIFICATION

FRIZIONE In bagno d'olio
CLUTCH Wet clutch

CAMBIO A 6 rapporti
GEARBOX 6 speeds

RAPPORTO PRIMARIA
44/79
PRIMARY DRIVE

RAPPORTI DEL CAMBIO
1° - 14/39
2° - 18/35
3° - 21/32
4° - 23/30
5° - 24/28
6° - 25/27
GEAR RATIO

TRASMISSIONE FINALE A catena, rapporto 16:36
FINAL DRIVE Chain drive, ratio 16:36

IMPIANTO ELETTRICO / ELECTRIC EQUIPMENT
ACCENSIONE
WALBRO ECUA-1
IGNITION

CANDELA
NGK CR9E
SPARK PLUG

AVVIAMENTO ELETTRICO
STARTING ELECTRIC

CICLISTICA / CHASSIS

TELAIO
Scomponibile, anteriore traliccio in tubi di acciaio, posteriore fusione in
alluminio
FRAME Decomposable, front steel trestle, rear alluminium alloy casting

SOSPENSIONE ANTERIORE Forcella upside-down con steli ø50 mm con regolazione idraulica in
estensione, compressione e precarico molla
FRONT SUSPENSION
Ø50 mm upside-down fork, with idraulic extension / compression and
spring preload adjustments

ESCURSIONE SOSPENSIONE
ANTERIORE 120 mm
FRONT SUSPENSION STROKE

SOSPENSIONE POSTERIORE
Forcellone oscillante a traliccio di tubi in acciaio, ammortizzatore
regolabile nell'idraulica (estensione, compressione alte e basse
velocità) e precarico molla, montato su cinematismo progressivo

REAR SUSPENSION
Steel tube trestle swingarm, rear dumper with idraulic adjustment
(extension, high and low speed compression) and spring preload
assembled with progressive link
ESCURSIONE SOSPENSIONE
POSTERIORE
120 mm
REAR SUSPENSION STROKE

FRENO ANTERIORE Doppio disco Wave flottante ø320 mm con pinze radiali a 4 pistoncini
FRONT BRAKE Twin floating Wave disk ø320 mm with radial 4 piston calipers

FRENO POSTERIORE Disco singolo Wave ø240 mm con pinza a doppio pistoncino
REAR BRAKE Singol Wave disk ø240 mm with double piston caliper

TIPO CERCHIO ANTERIORE In lega di alluminio
FRONT RIM TYPE Alluminium alloy

DIMENSIONI CERCHIO ANTERIORE
17"x3.50"
FRONT RIM DIMENSIONS

TIPO CERCHIO POSTERIORE In lega di alluminio
REAR RIM TYPE Alluminium alloy

DIMENSIONI CERCHIO
POSTERIORE 17"x6.00"
REAR RIM DIMENSION

PNEUMATICO ANTERIORE
120/70-ZR17 (120/65-ZR17)
FRONT TYRE

PNEUMATICO POSTERIORE
190/50-ZR17 (180/55-ZR17; 190/55-ZR17; 200/50-ZR17)
REAR TYRE

DIMENSIONI / DIMENSIONS

LUNGHEZZA
2085 mm
LENGHT

LARGHEZZA SENZA SPECCHI
790 mm
WIDHT EXCLUDING MIRRORS

ALTEZZA SENZA SPECCHI
1065 mm
HEIGHT EXCLUDING MIRRORS

ALTEZZA SELLA PILOTA
830 mm
PILOT SEAT HEIGHT

ALTEZZA SELLA PASSEGGERO
975 mm
PASSENGER SEAT HEIGHT

INTERASSE
1435 mm
WHEELBASE

ALTEZZA DA TERRA*
135 mm
GROUND CLEARANCE*

AVANCORSA
N.D.
TRAIL

INCLINAZIONE CANNOTTO STERZO
N.D.
STEERING PIPE ANGLE

MASSA A SECCO*
208 kg (ant 52,6% - post 47,4%)
UNLADEN WEIGHT*

MASSA IN ORDINE DI MARCIA**
218 kg
ROAD READY WEIGHT**

MASSA MASSIMA AMMISSIBILE
400 kg
PERMITTED TOTAL WEIGHT

CAPACITA' SERBATOIO
16 lt
USABLE TANK VOLUME

RISERVA
4 lt
RESERVE

Read More

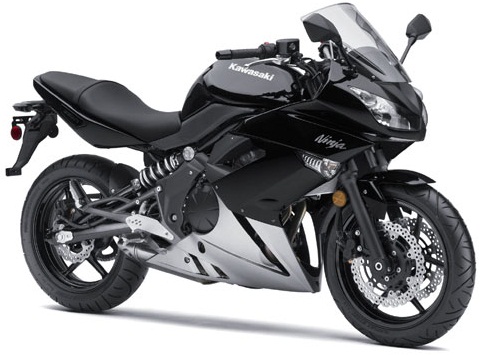

2010 Kawasaki Ninja 650R

Fuel-injected Ninja twin-cylinder performance, a beautiful Euro-inspired chassis, and relaxed all-day comfort combine to form the sweet, do-it-all Ninja 650R. Sleek form meets superior function in the bike's full fairing, and in the way its steel trellis frame integrates into its stylish swingarm via an innovative side-mounted shock. Carefully tuned suspension, triple disc brakes and a curb weight of just 450 pounds give this special motorcycle the sort of performance you expect from a Ninja sportbike.

The key to the Ninja 650R's slender size is its compact liquid-cooled, fuel-injected, DOHC, 8-valve 649cc parallel twin engine, which permits the use of a narrow, lightweight frame. Fuel injection and ignition settings on this torquey engine are carefully chosen to boost bottom-end torque, smooth low-mid rpm response and allow it to rev more quickly.

Routing the coolant to the cylinder and head through the engine cases reduces the number of external hoses. The engine also meets stringent emission regulations thanks to its precise fuel-injection and a three-way catalyst system with a 300-cell catalyzer.

The non-intimidating twin-cylinder appeals to new riders, and has an excellent mid-range that offers enough pizzazz to thrill more advanced riders. The shift lever position permits easy application of the Ninja 650R's linear power delivery. The manageable power delivery and superb roll-on response enable the new Ninja 650R to make short work of the morning commute or perform as an entertaining track day companion - all while delivering good fuel economy.

This spunky sportbike's frame, swingarm and suspension are all designed for minimal vibration and light, quick handling. Rubber upper-rear engine mounts in its signature trellis frame, and rubber-insulated handlebar mounts result in low vibration, for all-day comfort along with great handling. Rider and passenger footpegs are also rubber coated to reduce the amount of vibration transferred to the rider. The natural riding position and ergonomics are enhanced by a slim, low seat which makes reaching the ground easy for increased confidence.

Surrounding the Ninja 650R's chassis is unquestionably sporty styling. Avoiding unnecessary design flourishes, the Ninja 650R's sharp lines flow throughout the bike, giving it an aggressive appearance. The fairing's integrated turn signals and a sharp tail cowl ably highlight the motorcycle's compact dimensions. From its windscreen and dual headlights to the high-quality finish of its sleekly minimalist fairing, there's little room for doubt about this Ninja's supersport genetics.

Beyond its exciting appearance, MotoGP-inspired multi-function instrumentation and controls, the Ninja 650R is rolling proof that a performance motorcycle can be practical and comfortable. The rider may notice the slimness of the chassis, low seat height and minimal effort controls first before realizing the true aim of Kawasaki's design efforts - the rider.

The Ninja 650R's friendly ergonomics provide a versatile cockpit that both novice and experienced riders will use to employ its assets to the fullest, from the daily commute to a weekend canyon run. In other words, this real world overachiever easily demonstrates its versatility and everyday usefulness.

Features and Benefits:

Quick-Revving, 649cc Parallel-Twin Engine
- Liquid-cooled, DOHC, 8-valve fuel injected twin cylinder delivers smooth, responsive performance, especially in the low to medium rpm range
- Excellent mid-range power, exceptional roll-on response and impressive passing performance make even commuter traffic enjoyable
- Minimal vibration via a 180° crankshaft driven balancer shaft, which in turn drives the water pump
- Oil jets on the connecting rod big ends spray oil on the undersides of the pistons to aid cooling
- Lightweight plug-mounted ignition coils deliver a hot spark and save space
- High-capacity radiator for increased cooling efficiency
- Coolant routing travels directly to the engine cases, then follows internal passages to the cylinder and head for minimum external plumbing and a simplified cooling system

Digital Fuel Injection
- Fuel injection settings boosts the engine's bottom-end torque while letting it rev quicker
- Sub-throttle valve equipped 38mm Keihin throttle bodies offer optimum performance and rideability
- Located behind the main throttle valves, the sub-throttles are controlled by the DFI® system's ECU for a precise throttle response, similar to a constant-velocity carburetor
- Auto-fast idle system simplifies starting and helps ensure that the catalyzer reaches optimum temperature quickly
- Lightweight fuel pump mounted inside the fuel tank

Compact Engine Design
- Powerful twin-cylinder engine is the most compact in its category, which helps reduce the dimension of the entire motorcycle and allows use of a slim, minimalist frame
- Triangular setup of the crankshaft and transmission shafts makes the engine short front-to-back
- Transmission input shaft, output shaft and change drum are contained in a "cassette"-style package that allows a compact layout and eases transmission maintenance chores
- Semi-dry sump design reduces engine height
- Plated, linerless aluminum cylinders with a narrow cylinder pitch keep the engine light and slim

Cleaner Emissions
- Efficient fuel injection and a three-way catalyzer inside the exhaust produce very low emissions, able to pass the stringent Euro-III emission regulations
- 300-cell catalyzer is compact and light
- Under-engine muffler placement for mass centralization and a low center of gravity

Vibration Control
- Rubber upper rear engine mounts keep vibration low
- Handlebar is rubber-mounted to lessen vibration transmitted through the handle grips
- Rider and passenger footpegs are rubber coated to reduce vibration


Light-Handling Trellis Frame
- Slim, low, lightweight and compact design is narrow at the knees and footpegs for rider comfort and control
- The strong, high-tensile steel trellis frame not only looks lightweight, but it is - rivaling that of aluminum frames
- Ideal frame stiffness balance achieved through extensive 3D analysis translates directly into superb handling
- The frame, rear suspension and swingarm designs flow together with an integrated line running from the steering head to the rear hub
- Short front-to-back dimensions of the engine allow for a long swingarm and a short wheelbase combination that contributes to the light and nimble handling
- Clean frame joint finishes show off overall quality of the bike

Rigid Swingarm
- Swingarm is tuned to complement frame rigidity
- Swingarm has a D-shaped cross-section for strength and light weight
- Swingarm design further contributes to the Ninja 650R's high-quality appearance
- Elegant one-piece rider/passenger footpeg s tays complement the swingarm and stabilizer

Suspension
- 41mm fork and preload-adjustable laydown shock are tuned for light, rider-friendly handling
- Fork lower ends around the axle shaft add to the bike's performance and enhance its high-quality image

Confidence Inspiring Ergonomics
- An ideal handlebar, seat and footpeg relationship results in a comfortable and natural riding position suiting a wide range of riders
- Frame narrowed just aft of the fuel tank enables a slim seat, making the reach to the ground even easier
- The offset single-shock rear suspension layout with the battery located beside the shock instead of beneath it allows a lower seat height as well
- Low seat height and slim overall design make it easy to plant both feet firmly on the ground when stopped

Brakes
- Dual 300mm front petal disc brakes with twin 27mm piston front brake calipers and a single 220mm rear petal disc deliver plenty of braking power
- Front brake master cylinder and 14mm piston for smooth actuation

Sleek Supersport Bodywork
- Dual headlight design features multi-reflector bulb hoods and the twin position lights - like its Ninja supersport brethren
- A lip at the top of the windscreen deflects air away from the rider, along with a duct in the center of the cowling that creates an "air curtain" to reduce wind buffeting at higher speeds
- Tall fuel tank - especially noticeable when viewed from the side - adds to the bike's crouching appearance
- A flush-surface fuel cap and its sharp-edged motif give the tank a distinctive look
- Sharp, edged lines give the Ninja 650R an aggressive, crouching supersport look, yet the bodywork still accentuates the frame
- Distinctive Ninja supersport design elements of the front cowling and the fairings, such as the judicious combination of colored and black panels enhance its sporty image and compact appearance
- Integrated front turn signals with clear lenses and amber bulbs
- Completing the bike's aggressive sport appearance is a sharp tail cowling featuring a thin LED taillight
- Inner rear fender helps keep the underside of the sleek new tail cowl clean
- The turn signals also function as flashing hazard lights
- A long front fender keeps water splashing to a minimum and its two-tone design matches the Ninja 650R's light, compact theme
- Storage options include four tie-down hooks for baggage or a spare helmet to be secured to the seat and a storage space under the seat with room for a U-lock or similar device

Mirrors
- Mirror design is a similar supersport-style to that on the new Ninja ZX™-6R

Wheels
- Attractive six-spoke supersport-style wheels augment the bike's light look and reduce unsprung weight

Instruments/Controls
- MotoGP-inspired multi-function instrumentation includes a fuel gauge, digital speedometer, clock, odometer, dual trip meters and a bar-style digital tachometer
- Clock and trip meter can be viewed simultaneously
- Red backlighting for the LCD screen adds to the sporty image while the area around the instrument panel presents a clean, finished front cowl interior
- Stylized handlebar clamps and curved shapes on the brake master cylinder reservoir and clutch lever contribute to the Ninja 650R's high-quality appearance

Engine: Four-stroke, liquid-cooled, DOHC, four-valve per cylinder, parallel twin
Displacement: 649cc
Bore x stroke: 83.0 x 60.0mm
Compression ratio: 11.3:1
Cooling: Liquid
Fuel injection: Digital fuel injection with two 38mm Keihin throttle bodies
Ignition: Digital CDI
Transmission: Six-speed
Final drive: O-ring chain
Frame: Semi-double cradle, high-tensile steel
Rake / trail: 25 degrees / 4.2 in.
Wheelbase: 55.5 in.
Front suspension / wheel travel: 41mm hydraulic telescopic fork / 4.7 in.
Rear suspension / wheel travel: Single offset laydown shock with adjustable spring preload / 4.9 in.
Front tire: 120/70x17
Rear tire: 160/60x17
Front brake: Dual 300mm petal discs with two-piston calipers
Rear brake: Single 220mm petal disc with single piston caliper
Overall length: 82.7 in.
Overall width: 29.9 in.
Overall height: 47.2 in.
Seat height: 31.1 in.
Curb weight: 449.8 lbs.
Fuel capacity: 4.1 gal.
Colors: Candy Lime Green, Ebony, Metallic Island Blue
Good Times™ Protection Plan 12, 24, 36 or 48 months

Read More
